Component Specification

Box

  • Length: 15' 6"

  • Width: 96"

  • Interior Height: 62"

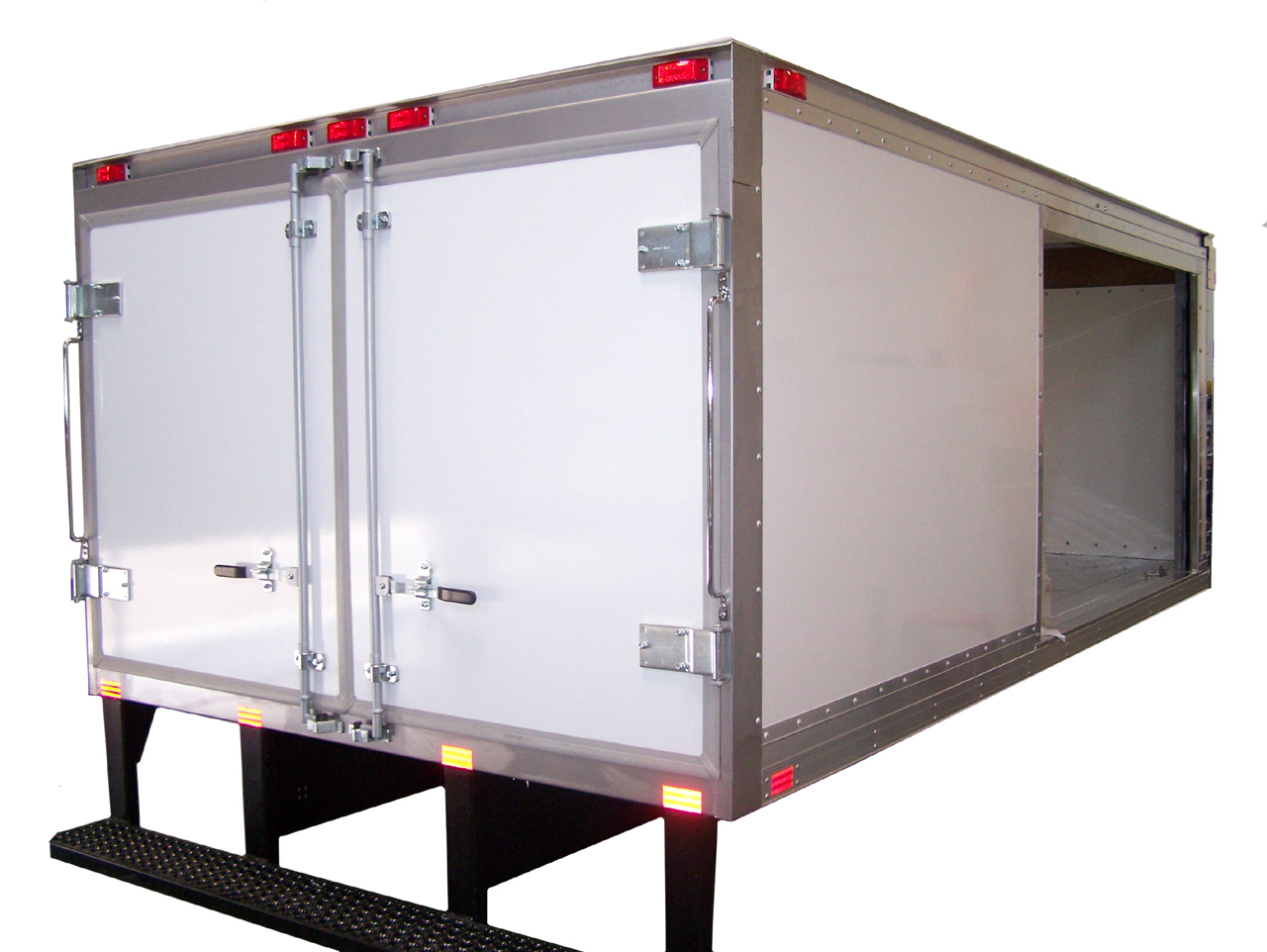

  • Rear Doors: Barn style swing doors w/ 2 hinges per side and holdbacks

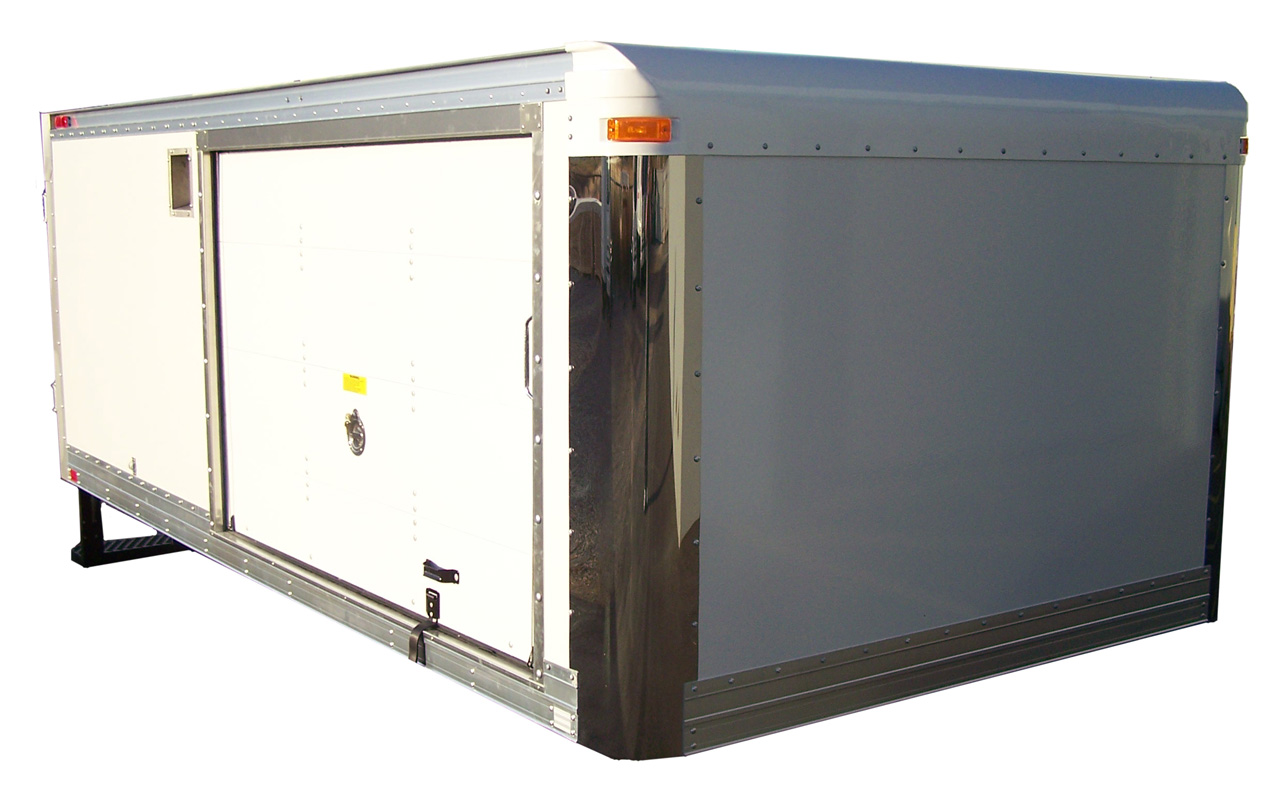

  • Side Door: Aluminum clad garage style roll up with 2-point key-locking w/slam latch

  • Floor: 6" aluminum extruded 1-1/8" thick tongue and groove

  • Floor (height): 42" from ground

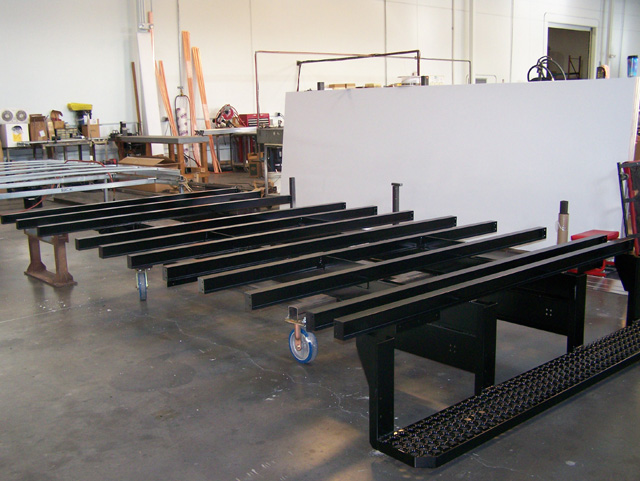

  • Frame (main): (2) 6" channels

  • Frame (cross member): 3" (h) beams

  • Frame (rear): Heavy gauge 304 stainless steel

  • Front Wall: Fiberglass reinforced plywood (FRP), stainless steel corner radius and aerodynamically designed fiberglass nose cap

  • Side Wall: Fiberglass reinforced plywood (FRP)

  • Top/Bottom Rails: High tensile aluminum extrusion

  • Roof: Translucent fiberglass, anti-snag roof bows on 23" center

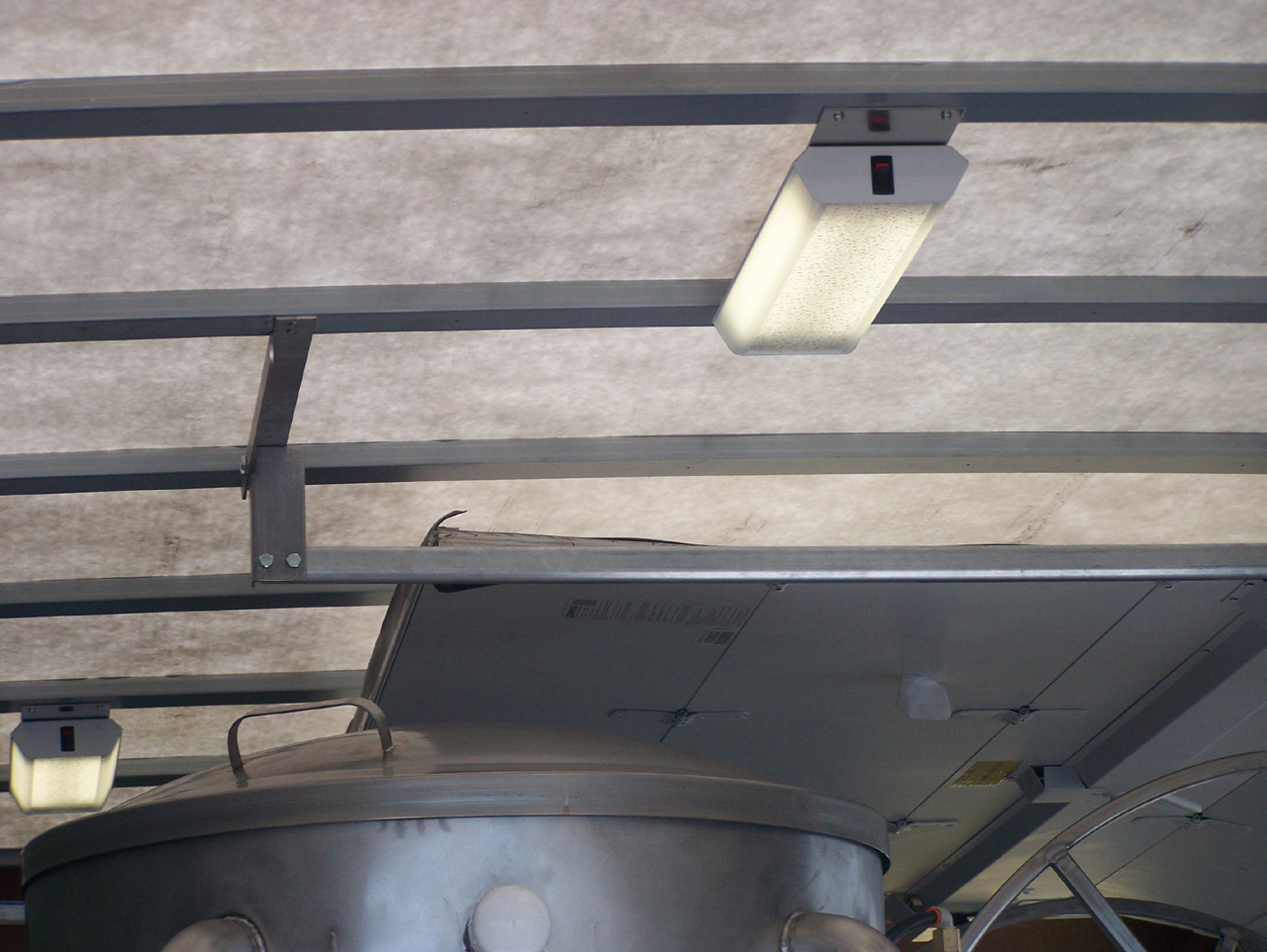

  • Interior Lighting: (3) 18" low profile fluorescent w/toggle switch

  • Exterior Lighting: Led sealed high impact marker lights with sealed wiring harness

  • Bumper: 10" anti-slip step

  • Bumper (height): 21" - 22"
